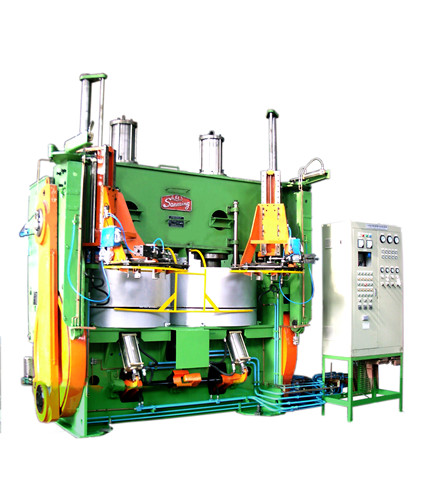

LLP-B1600×4300×2B轮胎硫化机技术参数
Tyre Curing Press Technical Data
|
项目
ITEM |
单位
UNIT |
规格
SPECIFICATIONS |
|
硫化室数目 Curing Cavity No. |
|
2 |
|
硫化室保温罩内径 Mould Shield I.D. |
mm |
Φ1602 |
|
最大合模力 Max. Squeezing Force |
kN |
4300×2 |
|
硫化模型高度 Mould Height |
mm |
254-650 |
|
中心机构结构形式 Center Mechanism |
|
BOM |
|
适用钢圈直径 Tyre Bead Diameters |
in |
16-24.5 |
|
硫化轮胎最大外径
Max. O.D. of Cured Tyre |
活络模SGM |
mm |
Φ1135 |
|
两半模2-Piece Mould |
mm |
Φ1270 |
|
硫化轮胎最大厚度 Max. Section Width of Cured Tyre |
mm |
450 |
|
胎坯最大高度 Max Green Tyre Height |
mm |
890 |
|
理论开/合模时间Designed Mould Open/Close Time |
s |
82 |
|
机械手可抓取最大重量 Max. Load of VCL |
kg |
100 |
|
模具最大重量 Max Mould Weight |
kg |
5500 |
|
硫化介质最大外压 Max. External Pressure |
MPa |
1.4 |
|
硫化介质最大内压Max. Internal Pressure |
MPa |
2.8 |
|
动力水压力 Hydraulic Water Pressure |
MPa |
2.1-2.5 |
|
动力空气压力Compressed Air Pressure |
MPa |
0.7 |
|
控制空气压力Control Air Pressure |
MPa |
0.35 |
注： 硫化轮胎最大外径和硫化轮胎最大厚度两尺寸与模具有关，表中硫化轮胎最大外径为预计值、硫化轮胎最大厚度为机器可通过的轮胎最大厚度值。
Remark: As Max.O.D.and Max.Section Width of cured tyre are related to the mould dimensions,the Max.O.D. shown in the above table are estimated value. And values for Max. Section Width are the Max.size which can pass through the curing cavities.
